PRODUCTS

Wood Working / Carpentry Tools

JP-01 Jack Plane No.3

Made with a quality grey cast iron body for strength and stability with precision ground base and sides for flatness and squareness. Machined seatings eliminate movement and blade judder. A lever cap with a brass locking screw secures the blade assembly and enables easy release for sharpening. Wooden handles and guidance knobs maximize user comfort. Available in plastic handle and corrugated base as well. Blade width 45mm.

JP-02 Jack Plane No.4 Plastic Handle

Made with a quality grey cast iron body for strength and stability with precision ground base and sides for flatness and squareness. Machined seatings eliminate movement and blade judder. A lever cap with a brass locking screw secures the blade assembly and enables easy release for sharpening. Plastic handles and guidance knobs maximize user comfort. Available in Corrugated Base as well.

JP-03 Jack Plane No.4

Made with a quality grey cast iron body for strength and stability with precision ground base and sides for flatness and squareness. Machined seatings eliminate movement and blade judder. A lever cap with a brass locking screw secures the blade assembly and enables easy release for sharpening. Wooden handles and guidance knobs maximize user comfort. Available in Plastic Handle & Corrugated Base as well. Blade width 50mm.

JP-04 Jack Plane No.5

Made with a quality grey cast iron body for strength and stability with precision ground base and sides for flatness and squareness. Machined seatings eliminate movement and blade judder. A lever cap with a brass locking screw secures the blade assembly and enables easy release for sharpening. Wooden handles and guidance knobs maximize user comfort. Available in Plastic Handle & Corrugated Base as well. Blade width 50mm.

JP-05 Jack Plane No.6

Made with a quality grey cast iron body for strength and stability with precision ground base and sides for flatness and squareness. Machined seatings eliminate movement and blade judder. A lever cap with a brass locking screw secures the blade assembly and enables easy release for sharpening. Wooden handles and guidance knobs maximize user comfort. Available in Plastic Handle & Corrugated Base as well. Blade width 60mm.

JP-06 Jack Plane No.7

Made with a quality grey cast iron body for strength and stability with precision ground base and sides for flatness and squareness. Machined seatings eliminate movement and blade judder. A lever cap with a brass locking screw secures the blade assembly and enables easy release for sharpening. Wooden handles and guidance knobs maximize user comfort. Available in Plastic Handle & Corrugated Base as well. Blade width 60mm.

JP-07 Duplex Rebate & Fillister Plane

The 778 plane is designed to cut rebates up to 38mm (1.1/2"). It is guided by an adjustable fence supported on one guide rod that can be pushed through which allows the fence to be used on either side of the plane.

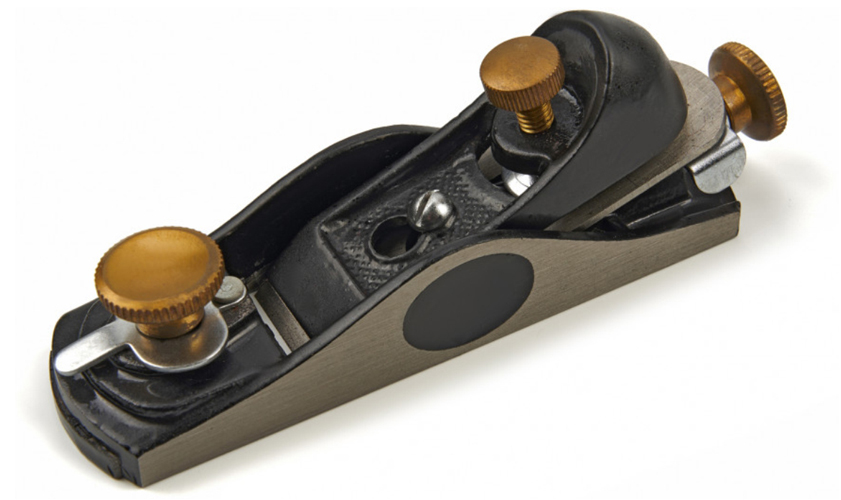

BB-01 Baby Block Plane No.102

Made of grey cast iron. Ideal for wood workers & hobbyists. Available in Plastic & Brass Coated Nut.

BB-02 Baby Block Plane No.110

Made of grey cast iron. Ideal for wood workers & hobbyists. Available in Plastic & Brass Coated Nut.

Spoke Shave Flat or Convex Head

Cast-iron and epoxy-coated with carbon steel blades for precision shaping. Vertical and horizontal lade for outer radii. Convex face for recessed surfaces. Blade width 52mm.

TBC-01 T-Bar Clamps

Made from T-Section Bar with painted finish. Cast Iron heads and feet for exerting high pressure. Also available in Powder Coated Finish. Can be made out of SG Iron. Available Sizes: 600, 900, 1200, 1500, 1800, 2100 & 2400mm.

TBC-02 T-Bar Clamp Heavy

A robust clamp for heavy-duty applications with the option of fitting to workbench. The extra heavy T-Bar construction and large malleable SG Iron camping heads and stock are virtually unbreakable and make this clamp extremely durable. Available Sizes: 600, 900, 1200, 1500 & 1800mm.

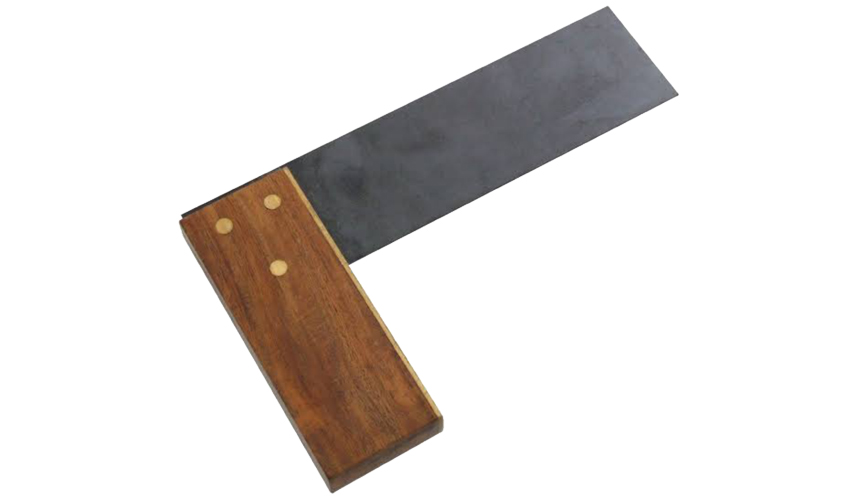

WT-01 Wooden Try Square

Brass faced to ensure accuracy and to provide protection against damage. The blade is securely fixed in place by solid rivets for long lasting durablity. Sizes: 3", 6", 9" & 12".

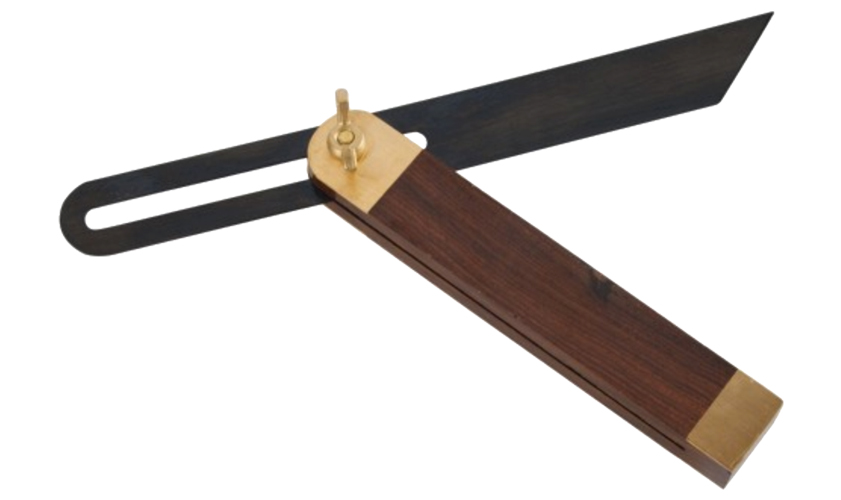

WT-02 Wooden Bevel Square Adjustable

Quality hardwood stock, finely machined and shaped with brass end caps. The blued spring steel blade can be locked in position by means of a brassed wing nut. Sizes: 4", 7.5", 9" & 10.5".

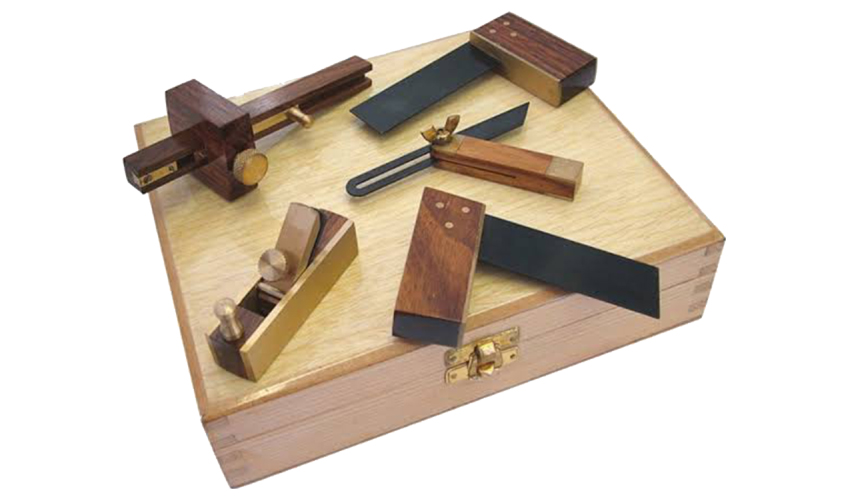

WT-03 Mini Wood Working Tool Set of 5 Pcs.

Manageable tools for intricate smaller applications such as model boats, planes, windows, toys, jewellery boxes and display cases etc. This 5 Pcs. set contains: Mini Woodworking Plane (13mm blade width, 70mm length), Mini Combination Gauge (135mm length), Mini Sliding Bevel (100mm blade length), Mini Try Square (100mm blade length), Mini Dovetail Square (100m blade length, 1:6 or approx).

HS-01 Hack Saw Frame Wooden Handle

A hacksaw is a fine-toothed saw, originally and principally for sutting metal. They can also cut various other materials, such as plastic and wood.

G-01 Mini G-Clamp Set of 3 Pcs.

The Mini G-Clamp comes in 3 different sizes 25, 50 & 75mm. These lamps are manufactured from malleable SG Iron making them virtually ubreakable. The clamps are designed to compress parts when gluing, fixing in a workbench or machine during carpentry and locksmith work, when a small gripping depth and the same consumption of staples require large compression fores.

G-02 G-Clamp Malleable Iron

These clamps are manufactured from malleable SG iron making them virtually unbreakable. The frames have a powder coated finish. Sizes: 50, 75, 100, 125, 150, 200, 250 & 300mm.

G-03 G-Clamp SG Iron

These clamps are manufactured from malleable SG Iron making them virtually unbreakable. The spindle has precision cut threads for smooth operation and maximum clamping pressure. The frames have a powder coated finish. Sizes: 50, 75, 100, 125, 150, 200, 250 & 300mm.
